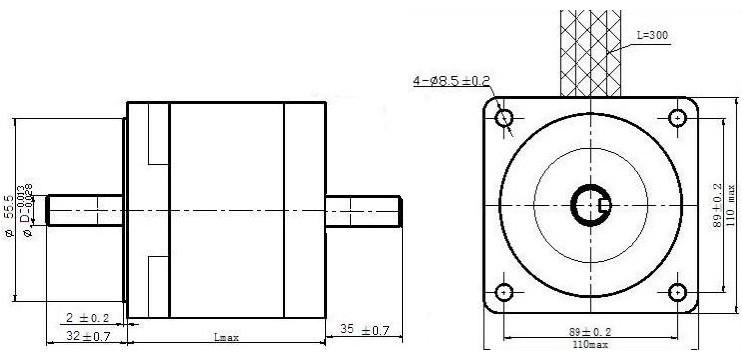

Embroidery machine motor

Model

Step Angle （°）

Length

L(mm)

Holding torque(N.m)

Current

(A/Phase)

Idling frequency(Hz)

Start frequency

(Hz)

Inductance

(mH)

Rotor inertia

(g.cm2)

Weight

(Kg)

Shaft diameter (mm)

Shaft extension(mm)

JX31122

1.2

220

18

3

3000

1600

18

20000

11

15/18

Double plate 0.5x30

JX31125

253

25

3

3000

1600

23

35000

13

15/18

Double plate 0.5x30

JX51122

0.36

220

18

3

3000

2300

14

15800

11

15/18

Double plate 0.5x30

JX51125

253

25

3

3000

2300

22

24000

13

15/18

Double plate 0.5x30

Electrical machinery winding

A

-A

B

-B

C

-C

earth

Aviation plug-in unit

Plug serial number

1

*

3

*

5

*

7

7cores

Plug serial number

1

2

3

4

5

6

7

12 cores

Wiring order

Red

Yellow

Blue

Red short

Yellow short

Blue short

The earth symbol

Wiring column

Electrical machinery winding

A

-A

B

-B

C

-C

D

-D

E

-E

earth

Aviation plug-in unit

Plug serial number

1

*

2

*

3

*

*

4

*

5

7

7cores

Plug serial number

1

2

3

4

5

6

7

8

9

10

7

12cores

Wiring order

Red

Yellow

Black

Blue

White

Red short

Yellow short

Black short

Blue short

White short

The earth symbol

Wiring column
