NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox and permanent magnet brake

Brand Name : KIMBROUGH

Model Number : 60HSEPGB58, 60HSEPGB65, 60HSEPGB78, 60HSEPGB84, 60HSEPGB102, 60HSEPGB112, 60HSEPGB125

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western union

Supply Ability : 999

Delivery Time : in stock

Packaging Details : carton

Contact Now

NEMA24 size 60mm 2phase closed loop stepper motor with planetary gearbox and permanent magnet brake / stepper motor with encoder and planetary reducer and brake

Planetary gearbox specifications

Technical Data 1 stage 2 stage
Reduction ratio 4, 5, 10 16, 20, 25, 40, 50, 100
Length L1: mm 53 70
Rated load: Nm ≤25 ≤40
Efficiency: % 95 90
Backlash: arcmin ≤15 ≤25
Weight: KG 0.8 1.1
Rated input speed: rpm 3000 3000
Max input speed: rpm 5000 5000
Safety class: IP 65 65
Lubrication: Life grease lubrication Life grease lubrication
Noise: dB ≤45 ≤45
Service life: h ~20000 ~20000

Specifications

Model Length(L:mm)

Motor Holding Torque

(N.m)

Rated Current

(A)

Resistance/Phase

(Ω)

Inductance/Phase

(mH)

Rotor Inertia

(g.cm2)

 Brake Torque(N.m) Weight(kg) Matched Driver
1-stage 2-stage 1-stage 2-stage
60HSEPGB58 174 191 1.7 5.8 0.48 1.1 300 1.9 2.45 2.75 HSE57
60HSEPGB65 181 198 2.1 5.8 0.53 1.2 570 2.55 2.85
60HSEPGB78 194 211 2.6 5.8 0.56 1.1 620 2.75 3.05
60HSEPGB84 200 217 3.0 5.8 0.5 1.3 840 2.85 3.15
60HSEPGB102 218 235 4.5 5.8 0.75 2.4 1000 3.1 3.4
60HSEPGB112 228 245 4.8 5.8 0.69 2.11 1200 3.3 3.6
60HSEPGB125 241 258 5.5 5.8 1.5 6.9 1370 3.6 3.9

Note: Other reduction ratio is acceptable, the brake is DC24V power-off brake, other voltage can be customized as required.

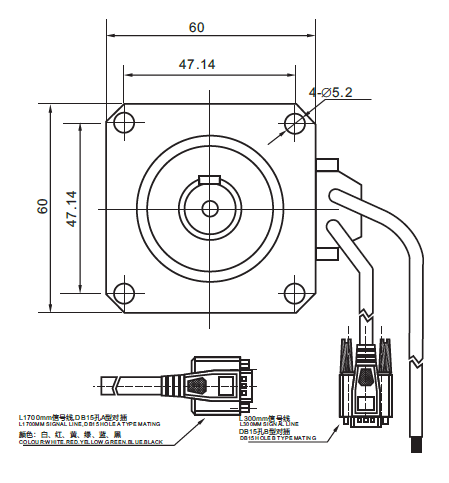

Dimension unit:mm

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox and permanent magnet brake

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox and permanent magnet brake

Encoder Connections

RED WHITE BLACK BLUE YELLOW GREEN
5V 0V A+ A- B+ B-

Motor connection
